用Jersey构建RESTful服务5--Jersey+MySQL5.6+Hibernate4.3

一、总体说明

本例运行演示了用Jersey构建RESTful服务中，如何同过Hibernate将数据持久化进MySQL的过程

二、环境

  1. 上文的项目RestDemo

  2. MySQL5.6下载http://dev.mysql.com/get/Downloads/MySQL-5.6/mysql-5.6.16-win32.zip

  3. Hibernate4.3.4下载http://sourceforge.net/projects/hibernate/files/hibernate4/4.3.4.Final/hibernate-release-4.3.4.Final.zip

  4. Java程序连接MySQL的驱动mysql-connector-java-5.1.29-bin.jar下载 http://dev.mysql.com/get/Downloads/Connector-J/mysql-connector-java-5.1.29.zip

三、数据库准备

  1. 搭建MySQL数据库

  2. 创建数据库RestDemo ,及数据表t_user,结构如下

    DROP TABLE IF EXISTS `t_user`;
CREATE TABLE `t_user` (
  `userId` varchar(50) NOT NULL,
  `userName` varchar(50) NOT NULL,
  `age` varchar(50) NOT NULL,
  PRIMARY KEY (`userId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

PS: userId 非自增长类型，需要在业务添加

四、引入Hibernate

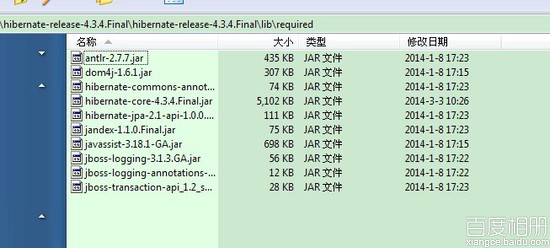

  1. 解压Hibernate的包，在lib\required文件夹下所有jar引入进项目

  2. 解压mysql-connector-java-5.1.29.zip，将mysql-connector-java-5.1.29-bin.jar引入进项目

  3. 在项目的根目录创建hibernate的配置文件hibernate.cfg.xml，内容如下：

    <?xml version='1.0' encoding='utf-8'?>
<!DOCTYPE hibernate-configuration PUBLIC
        "-//Hibernate/Hibernate Configuration DTD 3.0//EN"
        "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">

<hibernate-configuration>
   <session-factory>
   <!-- Database connection settings -->
        <property name="connection.driver_class">com.mysql.jdbc.Driver</property>
        <property name="connection.url">jdbc:mysql://127.0.0.1:3306/RestDemo</property>
        <property name="connection.username">root</property>
        <property name="connection.password"></property>

        <!-- JDBC connection pool (use the built-in) -->
        <property name="connection.pool_size">1</property>

        <!-- SQL dialect -->
        <property name="dialect">org.hibernate.dialect.MySQLDialect</property>

        <!-- Enable Hibernate's automatic session context management -->
        <property name="current_session_context_class">thread</property>

        <!-- Disable the second-level cache  -->
        <property name="cache.provider_class">org.hibernate.cache.internal.NoCacheProvider</property>

        <!-- Echo all executed SQL to stdout -->
        <property name="show_sql">true</property>

        <!-- Drop and re-create the database schema on startup -->
        <property name="hbm2ddl.auto">update</property>

        <mapping resource="com/waylau/rest/bean/User.hbm.xml"/>

    </session-factory>
</hibernate-configuration>

  4. 在项目User.java 的同个目录下，创建该类的映射文件User.hbm.xml

    <?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC
        "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
        "http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">

<hibernate-mapping package="com.waylau.rest.bean">

    <class name="User" table="T_USER">
        <id name="userId" column="USERID"  type="string" >
            <generator class="assigned"/>
        </id>
        <property name="userName" type="string" />
        <property name="age" type="string" />
    </class>

</hibernate-mapping>

  5. 创建包com.waylau.rest.util，在该包下创建HibernateUtil.java

    package com.waylau.rest.util;

import org.hibernate.SessionFactory;
import org.hibernate.boot.registry.StandardServiceRegistry;
import org.hibernate.boot.registry.StandardServiceRegistryBuilder;
import org.hibernate.cfg.Configuration;
/**
 * Hibernate 初始化配置工具类
 * @author waylau.com
 * 2014-3-23
 */
public class HibernateUtil {
     private static Configuration configuration;
     private static SessionFactory sessionFactory;
     private static StandardServiceRegistry standardServiceRegistry;
        static {
            try {
             //第一步:读取Hibernate的配置文件  hibernamte.cfg.xml文件
              configuration = new Configuration().configure("hibernate.cfg.xml");
             //第二步:创建服务注册构建器对象，通过配置对象中加载所有的配置信息
              StandardServiceRegistryBuilder sb = new StandardServiceRegistryBuilder();
              sb.applySettings(configuration.getProperties());
             //创建注册服务
              standardServiceRegistry = sb.build();
            //第三步:创建会话工厂
              sessionFactory = configuration.buildSessionFactory(standardServiceRegistry);
            } catch (Throwable ex) {
                // Make sure you log the exception, as it might be swallowed
                System.err.println("Initial SessionFactory creation failed." + ex);
                throw new ExceptionInInitializerError(ex);
            }
        }

        public static SessionFactory getSessionFactory() {
            return sessionFactory;
        }
}

  6. 在项目中建com.waylau.rest.dao包，在该包下建立User操作的接口UserDao.java

    package com.waylau.rest.dao;

import java.util.List;

import com.waylau.rest.bean.User;

/**
 * User Dao 接口
 * @author waylau.com
 * 2014-3-18
 */
public interface UserDao {

    public User getUserById(String id);

    public boolean deleteUserById(String id);

    public boolean createUser(User user);

    public boolean updateUser(User user);

    public List<User> getAllUsers();
}

  7. 在项目中建com.waylau.rest.dao.impl包，在该包下建立User操作接口的实现UserDaoImpl.java

    package com.waylau.rest.dao.impl;

import java.util.List;

import org.hibernate.Query;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.Transaction;

import com.waylau.rest.bean.User;
import com.waylau.rest.dao.UserDao;
import com.waylau.rest.util.HibernateUtil;
/**
 * 用户DAO实现
 * @author waylau.com
 * 2014-3-23
 */
public class UserDaoImpl implements UserDao {

    @Override
    public User getUserById(String id) {
        SessionFactory sessionFactory = HibernateUtil.getSessionFactory();
        Session s = null;
        Transaction t = null;
        User user = null;
        try{
         s = sessionFactory.openSession();
         t = s.beginTransaction();
         String hql = "from User where userId="+id;
         Query query = s.createQuery(hql);
         user = (User) query.uniqueResult();
         t.commit();
        }catch(Exception err){
        t.rollback();
        err.printStackTrace();
        }finally{
        s.close();
        }
        return user;
    }

    @Override
    public boolean deleteUserById(String id) {
        SessionFactory sessionFactory = HibernateUtil.getSessionFactory();
        Session s = null;
        Transaction t = null;
        boolean flag = false;
        try{
         s = sessionFactory.openSession();
         t = s.beginTransaction();
         User user = new User();
         user.setUserId(id);
         s.delete(user);
         t.commit();
         flag = true;
        }catch(Exception err){
        t.rollback();
        err.printStackTrace();
        }finally{
        s.close();
        }
        return flag;
    }

    @Override
    public boolean createUser(User user) {
        SessionFactory sessionFactory = HibernateUtil.getSessionFactory();
        Session s = null;
        Transaction t = null;
        boolean flag = false;
        try{
         s = sessionFactory.openSession();
         t = s.beginTransaction();
         s.save(user);
         t.commit();
         flag = true;
        }catch(Exception err){
        t.rollback();
        err.printStackTrace();
        }finally{
        s.close();
        }
        return flag;
    }

    @Override
    public boolean updateUser(User user) {
        SessionFactory sessionFactory = HibernateUtil.getSessionFactory();
        Session s = null;
        Transaction t = null;
        boolean flag = false;
        try{
         s = sessionFactory.openSession();
         t = s.beginTransaction();
         s.update(user);
         t.commit();
         flag = true;
        }catch(Exception err){
        t.rollback();
        err.printStackTrace();
        }finally{
        s.close();
        }
        return flag;
    }

    @Override
    public List<User> getAllUsers() {
        SessionFactory sessionFactory = HibernateUtil.getSessionFactory();
        Session s = null;
        Transaction t = null;
        List<User> uesrs = null;
        try{
         s = sessionFactory.openSession();
         t = s.beginTransaction();
         String hql = "select * from t_user";
         Query query = s.createSQLQuery(hql).addEntity(User.class);
         query.setCacheable(true); // 设置缓存
         uesrs = query.list();
         t.commit();
        }catch(Exception err){
        t.rollback();
        err.printStackTrace();
        }finally{
        s.close();
        }
        return uesrs;
    }

}

  8. 修改项目中 com.waylau.rest.resources包下的UserResource.java，使之前在内存中模拟CURD转为在数据库中实现

    package com.waylau.rest.resources;

import java.util.ArrayList;
import java.util.List;

import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.Consumes;
import javax.ws.rs.PathParam;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.DELETE;
import javax.ws.rs.GET;
import javax.ws.rs.POST;
import javax.ws.rs.PUT;

import com.waylau.rest.bean.User;
import com.waylau.rest.dao.impl.UserDaoImpl;

/**
 * 用户资源
 * @author waylau.com
 * 2014-3-19
 */
@Path("/users")
public class UserResource {
    private UserDaoImpl userDaoImpl = new UserDaoImpl();
    /**
     * 增加
     * @param user
     */
    @POST
    @Consumes({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})
    public void createUser(User user) {
        userDaoImpl.createUser(user);
    }

    /**
     * 删除
     * @param id
     */
    @DELETE
    @Path("{id}")
    public void deleteUser(@PathParam("id")String id){
        userDaoImpl.deleteUserById(id);
    }

    /**
     * 修改
     * @param user
     */
    @PUT
    @Consumes(MediaType.APPLICATION_XML)
    public void updateUser(User user){
        userDaoImpl.updateUser(user);
    }

    /**
     * 根据id查询
     * @param id
     * @return
     */
    @GET
    @Path("{id}")
    @Produces({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})
    public User getUserById(@PathParam("id") String id){
        User u = userDaoImpl.getUserById(id);
        return u;
    }

    /**
     * 查询所有
     * @return
     */
    @GET
    @Produces({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})
    public List<User> getAllUsers(){
        List<User> users = new ArrayList<User>();
        users = userDaoImpl.getAllUsers();
        return users;
    }

}

五、运行

  1. 将服务端运行后

  2. 运行UserClient客户端，可以看到数据库已经实现增删改查

完整项目架构如下：

本章源码：https://github.com/waylau/RestDemo/tree/master/jersey-demo5-mysql-hibernate
